Railway swing bridge

About the project:
The new swing bridge over the River Prai in Malaysia moves not less than 1,100 tonnes of steel in 120 seconds on one axis, thus opening a passage for shipping in the shortest time.

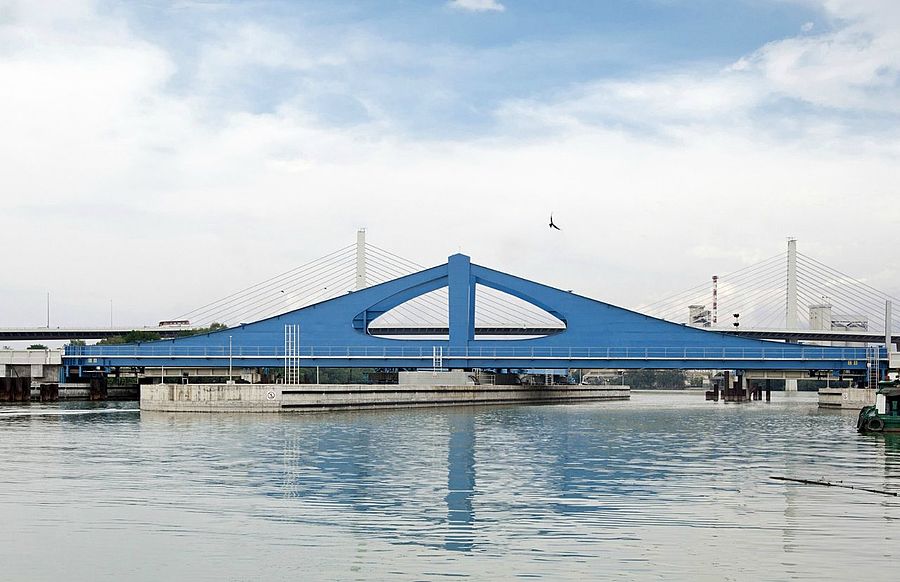

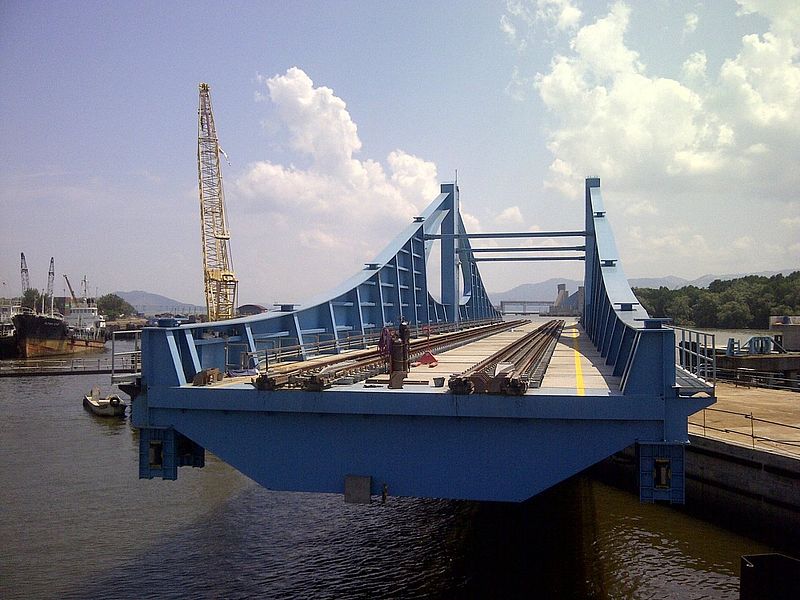

The new Prai River Swing Bridge is a double-track bridge situated on the legendary railway line between Singapore and Bangkok, some 350 km north of Kuala Lumpur, connecting the harbour of Butterworth with the main railway line.

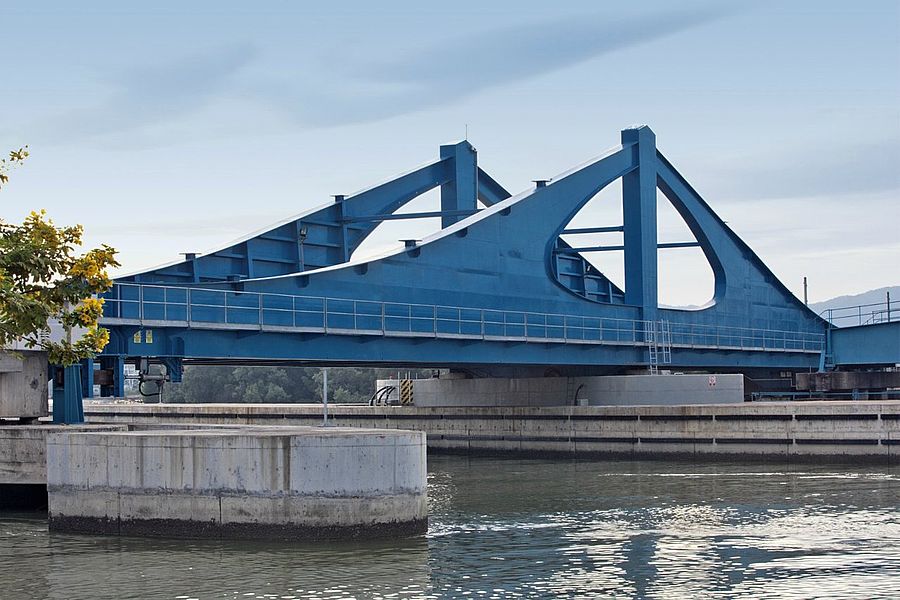

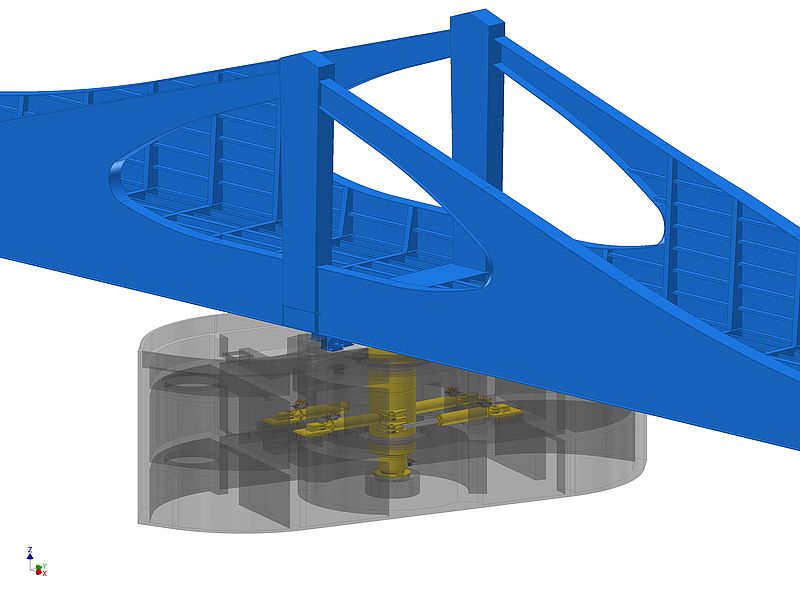

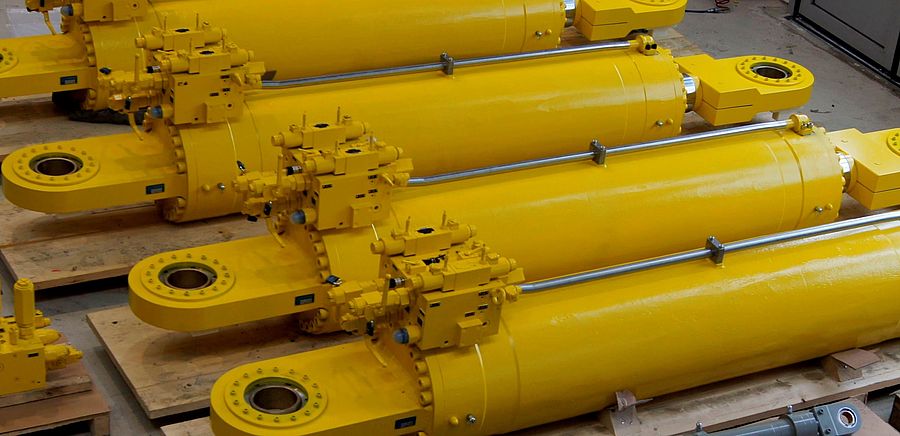

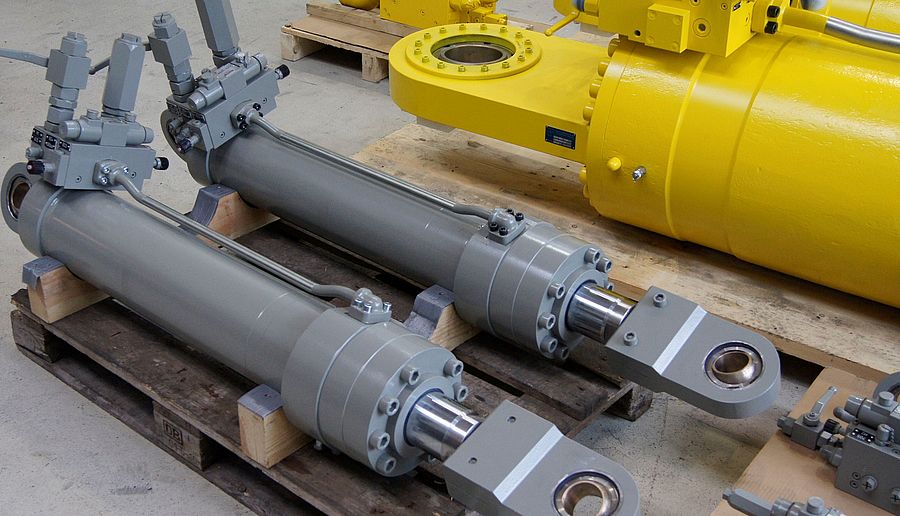

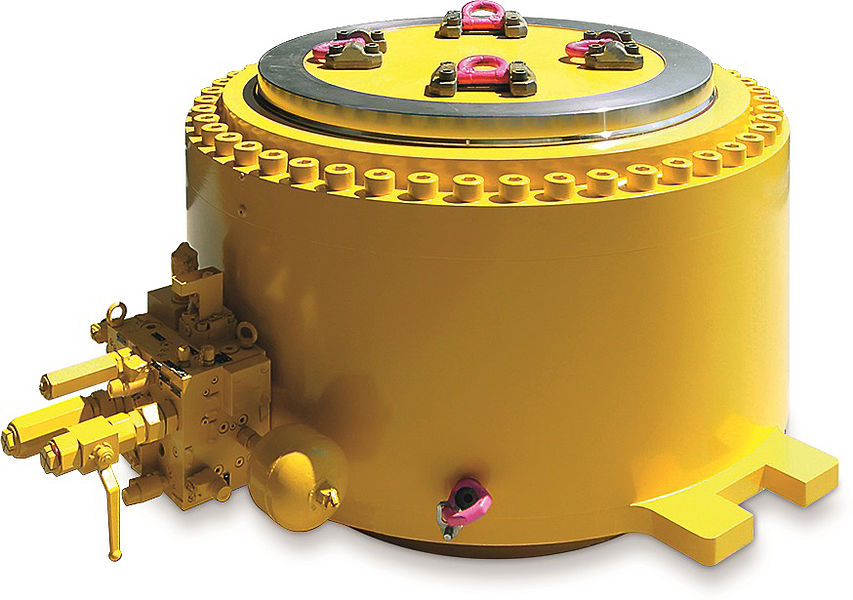

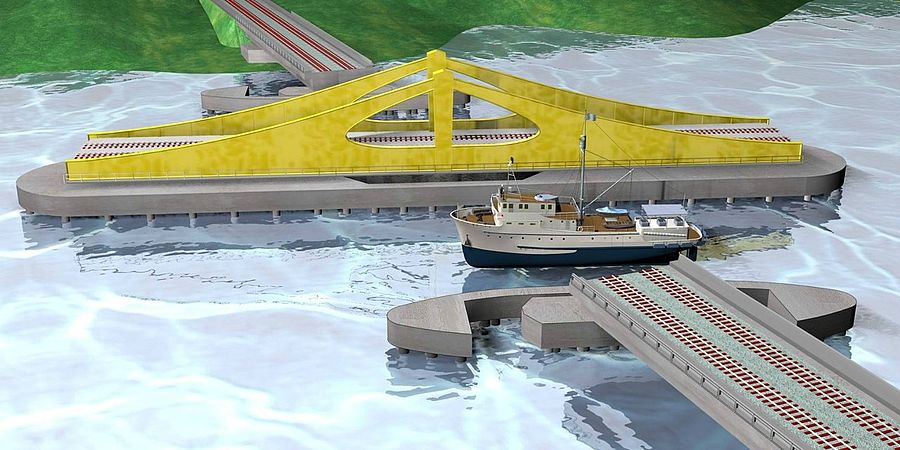

The new structure has a total length of 90m (2 x 45m cantilevers from the central axis of rotation) and is supported on a central steel pier that incorporates the main pivot shaft with a diameter of 2000mm and a height of 5m. Trains cross the bridge at a maximum speed of 60 km/h. Powered by an electro-hydraulic drive, the bridge slews up to 72° to allow ships and ferries to pass throug.

Learn more about that project in our detailled project description (in German language).

go to project
