Small Power Packs Standard NG06

ATP Hydraulik developed a modular system for standard power packs.

Key figures for the standard small power packs range
Flow rates: 1.4 - 16 L/min.
Power: 0.55 - 3 kW
Volume and material container: steel, 10 and 18 liters

The small power packs are inteded for clamping mechanisms or simple applications such as lifting platforms or flaps for machine tools.

catalogue standard small power packs

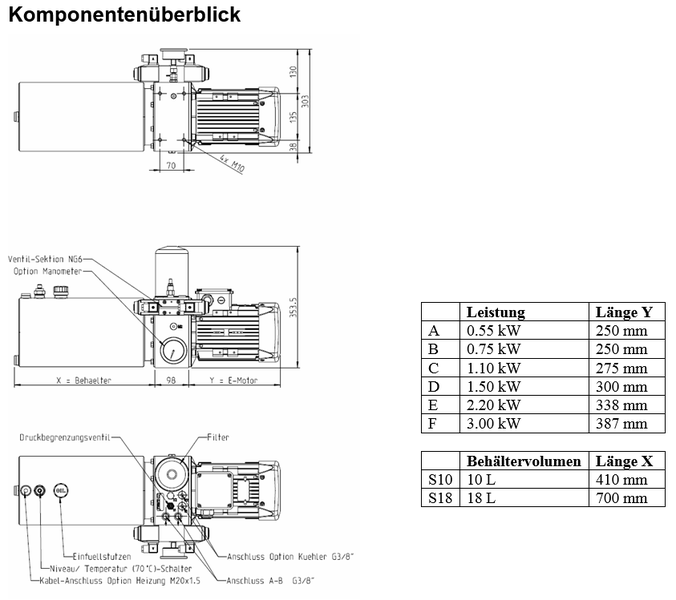

variations

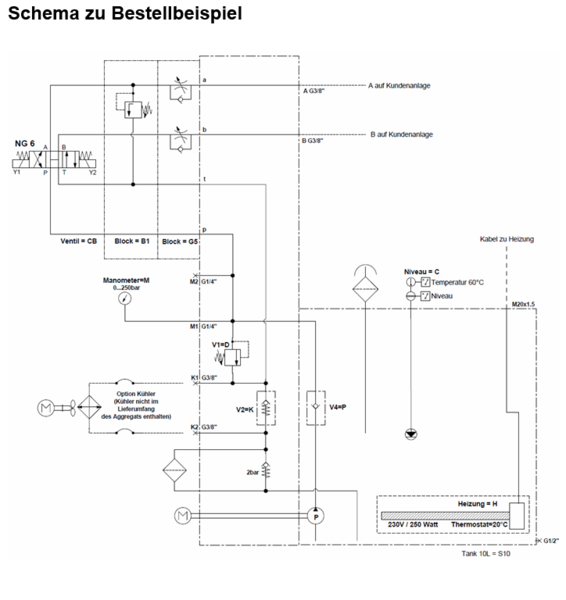

With ATP Hydraulik's standard power packs range our customer have access to an extensive modular system most applications can easily be visualized with.

Self-developed and in-house produced hydraulic manifolds are used in combination with Cartridge and Cetop valves.

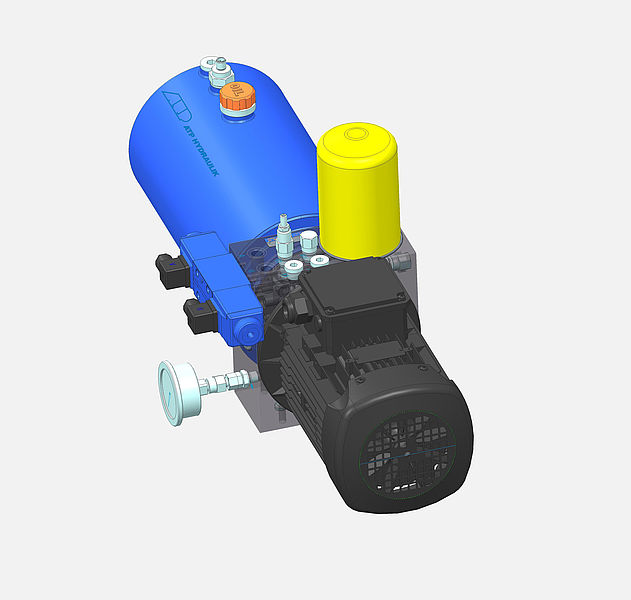

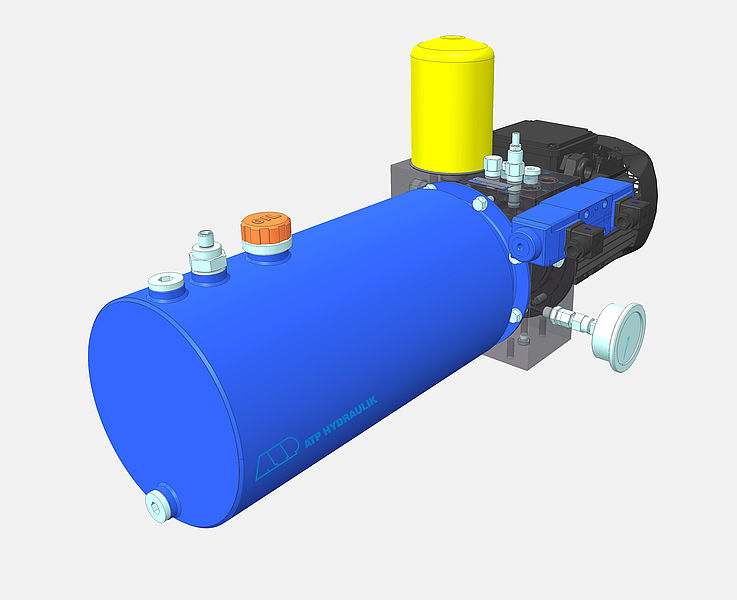

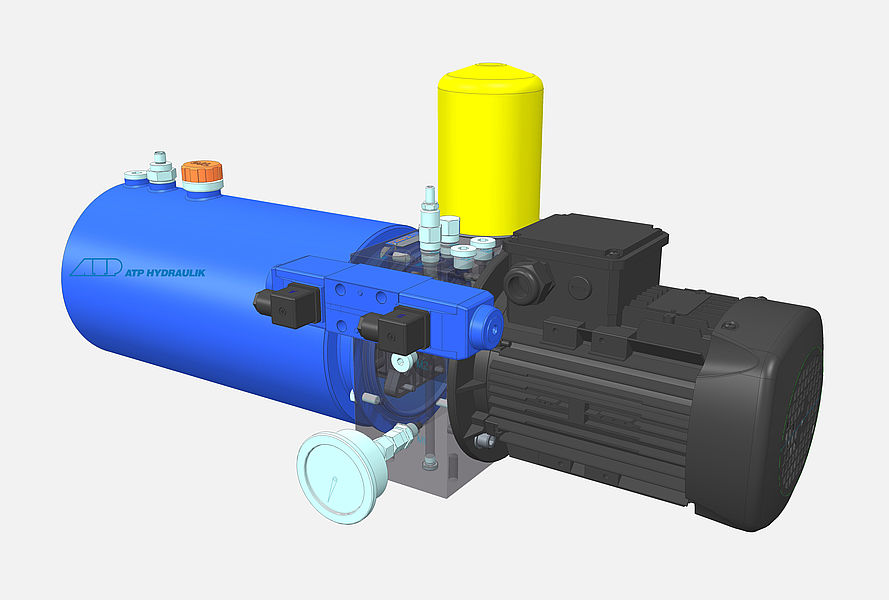

Photo gallery
